Heavy Duty Industrial Ventilation Fan Max Airflow 45000m³/h Greenhouse Circulation Fans

Heavy Duty Industrial Ventilation Fan Max Airflow 45000m³/h Greenhouse Circulation Fans

45000m³/h Industrial Ventilation Fan,Greenhouse Circulation Fans,Heavy Duty Industrial Ventilation Fan

Greenhouse Circulation Fans

Heavy Duty Industrial Ventilation Fan

محل منبع:

چین

نام تجاری:

Terrui

گواهی:

CE

شماره مدل:

YDA048DECKA0

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
نام محصول:
فن اگزوز 48''
اندازه:
1460*1460*580 میلی متر
قطر تیغه:
48 اینچ / 1.22 متر
نصب و راه اندازی:
به قاب روي ديوار بچسبون
حجم هوا در وات:
52.9m³/h
فعلی:
1.7A
سرعت چرخش:
460R/دقیقه (20 ٪ -100 ٪ کنترل سرعت)
قدرت:
3Φ/380V/50HZ
سطح حفاظت:
IP55
مواد قاب:
از فیبرگلاس با قدرت بالا
حداکثر جریان هوا:
45000 متر مکعب در ساعت
موتور:
موتور DC بدون جاروبک روتور بیرونی
تایپ کنید:
فن اگزوز صنعتی
برجسته کردن:

45000m³/h Industrial Ventilation Fan,Greenhouse Circulation Fans,Heavy Duty Industrial Ventilation Fan

,

Greenhouse Circulation Fans

,

Heavy Duty Industrial Ventilation Fan

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
20
قیمت
discuss
جزئیات بسته بندی
پالت چوبی
زمان تحویل
10 روز کاری
شرایط پرداخت
L/C، T/T
محصولات مرتبط
با ما تماس بگیرید
86-21-64953307
اکنون تماس بگیرید
توضیحات محصول

Energy-Saving Ventilation Fan featuring Advanced Rare Earth EC Motor Technology


Slash your operational costs without sacrificing performance with our ultra-efficient exhaust fan. This unit is powered by advanced Rare Earth EC motor technology, which consumes up to 70% less energy than conventional induction motors. The brushless design eliminates friction losses, ensuring that more power is converted directly into airflow. This translates to significant savings on your electricity bills over the fan's extended lifespan. Smart APP control further enhances efficiency, allowing you to run the fan at optimal speeds and only when necessary, maximizing your return on investment.



Heavy Duty Industrial Ventilation Fan Max Airflow 45000m³/h Greenhouse Circulation Fans 0



Technical Parameters:

Noise

≤70dB

Type

Industrial exhaust fan

Frame Material

High-strength fiberglass

Installation

Screw to the frame on the Wall

Product Model

YDA048DECKA0

Motor

Outer rotor permanent magnet brushless DC motor

Power

3Φ/380V/50Hz

Input power

850w

Max Airflow

45000m³/h

Air Volume/W

52.9m³/h

Rotation Speed

460r/min(20%-100% Speed Control)

Fan Blade Diameter

48''/1.22m

Product Name

48’’/1.2M REFINE Exhaust fan

Protection Level

IP55

Current

1.7A

Frame Size

1460*1460*580mm

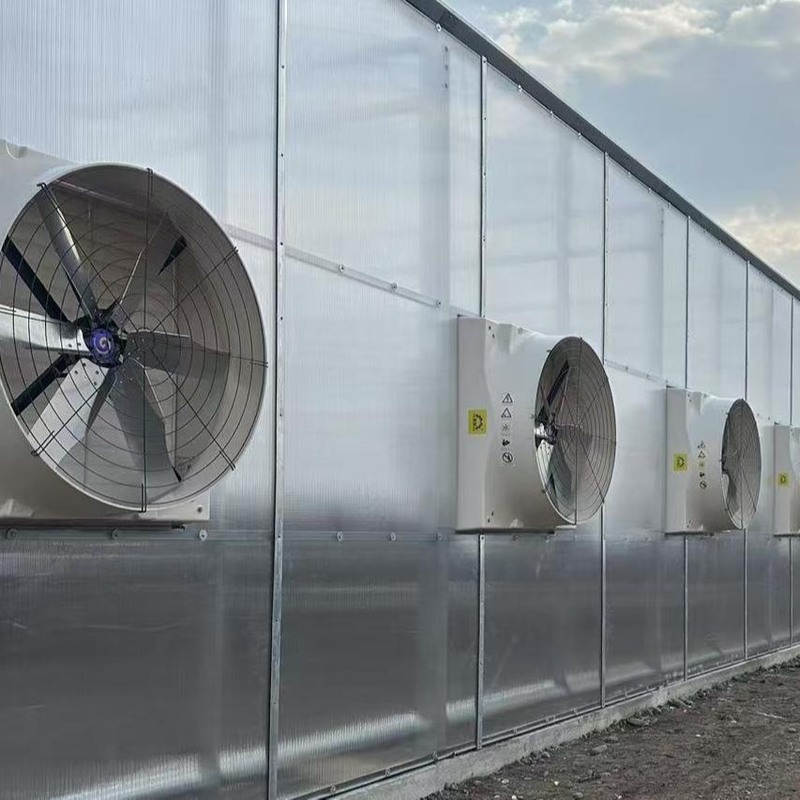

This fan is an ideal investment for any facility focused on reducing long-term energy consumption and operating costs. It is perfect for large commercial buildings, data centers, indoor farms, and public institutions where ventilation systems run for extended periods. By upgrading to this energy-saving technology, businesses can not only lower their utility expenses but also contribute to sustainability goals and reduce their carbon footprint, making it a smart choice for both your budget and the environment.
